Khoom Description

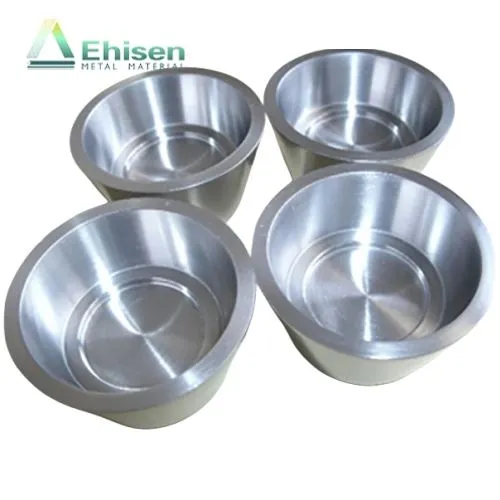

Lub molybdenum crucible yog ua los ntawm molybdenum hmoov, nws qhov kub thiab txias yog nyob nruab nrab ntawm 1100 degree thiab 1700 degree, tab sis nws lub siab melting point yog siab li 2610 degree, yog li nws yog dav siv nyob rau hauv cov tub ntxhais ntim xws li sapphire ib leeg siv lead ua kev loj hlob rauv thiab Shi Ying iav. melting Lub cub tawg. Molybdenum crucible nrog siab purity thiab ntom ua lub luag haujlwm tseem ceeb hauv kev ua tiav ntawm cov noob siv lead ua, kev tswj xyuas zoo ntawm cov siv lead ua rub, thiab kev pabcuam lub neej ntawm sapphire ib leeg siv lead ua kev loj hlob rauv.
Lub molybdenum crucible yog ib qho cuab yeej siv rau kev ua haujlwm kub kub, feem ntau yog ua los ntawm cov hlau molybdenum vim molybdenum muaj cov yam ntxwv ntawm lub siab melting point, corrosion kuj, thiab hnav tsis kam. Nws feem ntau yog siv rau kub-kub melting, sintering, thiab sublimation.
Cov txheej txheem ntawm kev tsim cov molybdenum crucible feem ntau yog nias molybdenum hmoov rau hauv cov duab uas xav tau thiab tom qab ntawd sintering ntawm qhov kub thiab txias. Nyob rau hauv cov txheej txheem sintering, molybdenum hmoov yog rhuab mus rau ib tug kub kub, thiaj li hais tias nws hais fuse los ua ib tug khoom khoom. Tom qab sintering, lwm yam kev ua haujlwm, xws li milling, polishing, thiab drilling, feem ntau xav tau kom tau txais cov khoom tsim nyog thiab qhov loj me.
Khoom Description
Molybdenum Crucibles Properties
|
Molecular Luj |
95.94 |
|
Qhov tshwm sim |
Nyiaj |
|
Melting Point |
2623 degree |
|
Boiling Point |
4 639 ygo |
|
Qhov ntom |
10280 kg / m3 |
|
Hluav taws xob Resistivity |
5.2 microhm-cm @ 0 degree |
|
Electronegativity |
1.9 Pauling |
|
Kub ntawm Fusion |
6.6 Cal/gm mole |
|
Kub ntawm Vaporization |
128 K-Cal / gm atom ntawm 4612 degree |
|
Poisson tus ratio |
0.31 |
|
Tshwj xeeb kub |
0.0599 Cal/g/K @ 25 degree |
|
Thermal conductivity |
1.38 W/cm/K @ 298.2 K |
|
Thermal Expansion |
(25 degree) 4.8 µm·m-1·K-1 |
|
Vickers Hardness |
1530 MPa rau |
|
Young's Modulus |
329 gp ua |
Molybdenum crucible feem ntau muab faib ua sintering molybdenum crucible thiab spinning molybdenum crucible.
| Qauv |
Sintering molybdenum crucibles
|
Spinning molybdenum crucibles
|
|
Khoom piav qhia |
Sintering molybdenum crucibles feem ntau yog siv rau cov thawv kub kub, thiab tuaj yeem siv rau hauv lub tshuab nqus tsev thiab inert lossis txo cov roj hauv qab 2100 degree. |
Spinning yog ib txoj hauv kev tsim thiab ua cov txheej txheem los ua nyias-phab ntsa Hollow Rotary Parts. Nws tso siab rau lub zog noj ntawm lub log teb lossis lub pas nrig txhawm rau ntxiv qhov siab rau cov hlau tsis muaj rotating raws tib lub axis ntawm cov tub ntxhais pwm, yog li ua rau cov yas hauv zos deformation rau daim ntawv hollow. |
|
Cov cheeb tsam ntawm daim ntawv thov |
Molybdenum muaj qhov siab melting point, siab kub lub zog, tsis muaj kuab paug, thiab zoo machinability. Nws qhov ceev yog kwv yees li ib nrab ntawm cov tungsten. Nws yog dav siv nyob rau hauv Sapphire siv lead ua kev loj hlob, tsis tshua muaj-lub ntiaj teb smelting, thiab txheej kev lag luam raws li melting ntim. |
Thaum molybdenum phaj tau ua tiav los ntawm kev sib tw thiab cov txheej txheem ua haujlwm kub, nws cov nplej tau txuas ntxiv nyob rau hauv siab, thiab nws lub cev ua haujlwm tau zoo dua qub, uas txo cov khoom siv raws li qhov yuav tsum tau muaj zog. Spinning molybdenum crucibles muaj kev tiv thaiv zoo rau kev kub siab creep. Tsis tas li ntawd, vim hais tias ntawm cov yam ntxwv ntawm molybdenum hlau xws li siab melting point, siab kub zog, tsis muaj kuab paug, corrosion kuj, loj thermal conductivity, me me thermal expansion coefficient, thiab zoo hardenability, spinning molybdenum crucibles yog dav siv nyob rau hauv Sapphire siv lead ua kev loj hlob, tsawg-lub ntiaj teb smelting, thiab txheej kev lag luam raws li melting ntim. |
|
Khoom Specifications |
1. Qhov ntau thiab tsawg ntawm cov khoom customized rau koj |
Peb muaj cov cuab yeej paub tab thiab cov txheej txheem, thiab peb tuaj yeem kho cov khoom lag luam nrog txhua qhov loj me uas koj xav tau. |
|
Txheej txheem ntau lawm |
Cov Txheej Txheem Ua Haujlwm hauv kev tsim cov khoom lag luam |
Cov thev naus laus zis thev naus laus zis ua kom muaj txiaj ntsig zoo tswj hwm tus nqi, thiab kev siv nyiaj tau zoo yog peb lub hom phiaj. |
Daim ntawv thov khoom
Daim ntawv thov ntawm molybdenum crucible feem ntau suav nrog kev lag luam metallurgical, kev lag luam hauv ntiaj teb tsis tshua muaj, monocrystalline silicon, hnub ci zog, kev ua tshuab, siv lead ua, thiab lwm yam. Lub molybdenum crucible yog ua los ntawm molybdenum hmoov, nws qhov kub thiab txias yog nyob nruab nrab ntawm 1100 degree thiab 1700 degree, tab sis nws Z-siab melting point yog siab li 2610 degree, yog li nws yog dav siv nyob rau hauv core ntim xws li sapphire ib leeg siv lead ua kev loj hlob rauv thiab Shi. Ying iav melting rauv. Molybdenum crucible nrog siab purity thiab ntom ua lub luag haujlwm tseem ceeb hauv kev ua tiav ntawm cov noob siv lead ua, kev tswj xyuas zoo ntawm cov siv lead ua rub, thiab kev pabcuam lub neej ntawm sapphire ib leeg siv lead ua kev loj hlob rauv.
packing kev xa khoom
Ntim Cov kauj ruam
1. Siv cov ntawv tsis muaj dej tsis zoo rau kev qhwv.
2. Khaws rau hauv cov thawv uas ua los ntawm kraft ntawv.
3. Lub thawv ntoo yog ntim puv nrog ua npuas ncauj pearl paj rwb los ntawm txhua sab.
4. Packed nyob rau hauv kev cai-tsim, finely crafted ntoo thawv.
EHISEN
Lub tuam txhab tau tsim nyob rau hauv 2004 raws li ib tug high-tech enterprise tsom rau advanced hlau cov ntaub ntawv ntau lawm, xws li melting, profileing, machining, thiab precious hlau anode tshawb fawb thiab kev loj hlob.With ib tug 15 mu cheeb tsam thiab 50 neeg ua hauj lwm, peb lub tuam txhab specializes nyob rau hauv advanced manufacturing.
Lub tuam txhab muaj cov khoom siv rau kev tsim cov hlau, dov, kev kho cua sov, thiab stamping. Cov chaw ua haujlwm, electroplating, titanium anode cov kab ntau lawm thiab cov hlau muaj nuj nqis txheej kuaj, nrog rau cov khoom siv sib txuas. R & D, ntau lawm, thiab muag khoom.
